A site-to-site virtual private network (VPN) provides secure remote connectivity between private networks over public connections like the internet. This connectivity could be between two branches or data centers, or it could be from an on-premise network to a cloud network.
The Azure site-to-site VPN is one of the quickest methods to achieve secure remote connectivity between your on-premise network and Azure resources hosted in a virtual network. This is in comparison with a physical cross-connect using Azure ExpressRoute or a VPN based on a network virtual appliance (NVA).
In this article, you'll learn how to set up an Azure site-to-site VPN to provide secure remote connectivity between your on-premise network and a virtual network using the Azure portal. During this process, you'll create a virtual network, gateway subnet, VPN gateway, and a local network gateway. Then, you'll configure your VPN devices, create and verify those VPN connections, and finally, connect to a virtual machine.
What Is Azure Site-to-Site VPN

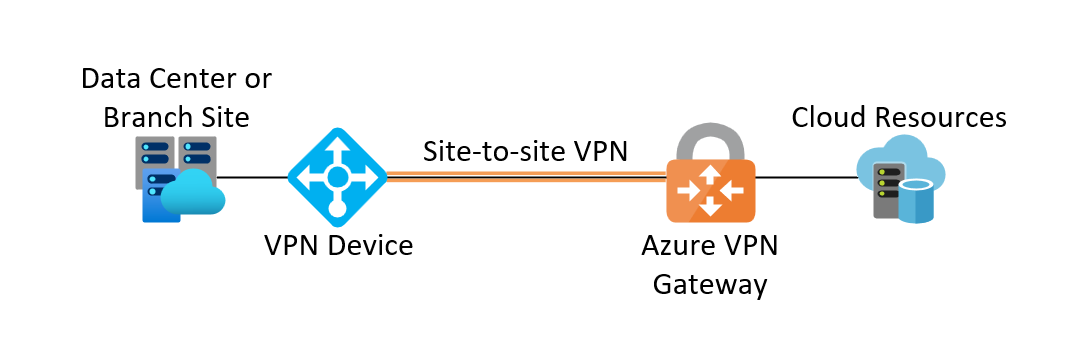

Azure site-to-site VPN is an encrypted connection from an Azure VPN Gateway to a remote VPN device that supports IP security (IPsec) as a tunneling protocol. An Azure VPN Gateway is a Microsoft Azure platform-as-a-service (PaaS) offering that provides reliable, redundant, and high-performance connectivity between an Azure virtual network and remote sites:
When configuring a site-to-site VPN over the internet, the VPN Gateway requires its own dedicated subnet and a public IP address. Azure offers multiple SKUs to facilitate specific performance and capacity requirements. As with most public cloud services, Azure site-to-site VPN incurs a cost for consumption that varies based on the SKU. Once the VPN Gateway is configured for an Azure site-to-site VPN, the Azure portal can produce a configuration template for the remote VPN device to simplify the on-premise part of the deployment.
In an Azure classic deployment model , each cloud resource exists independently, ungrouped, and unrelated from other resources. However, in its updated resource manager model , resource groups gather related resources. This latter model is recommended for all new deployments.
Using Azure Site-to-Site VPN
Before configuring an Azure site-to-site VPN, you need the following:
- Sign up for an active Azure subscription to estimate costs and provide a payment method for monthly billing. Microsoft provides a free thirty-day trial with a $200 USD billing credit to get started.
- Make sure the on-premise VPN device that will connect to the Azure site-to-site VPN is compatible . If your VPN device isn't on the list, it may still work but has not yet been validated by Microsoft.
- Verify that you have a public IPv4 address assigned to your on-premise VPN device. This allows the Azure VPN Gateway to initiate the IPsec connection, which ensures faster VPN establishment.
Create a Virtual Network
Once you have your prerequisites in place, it's time to create a virtual network (VNet) to connect the site-to-site VPN to private Azure resources. The virtual network contains subnets where you can deploy networking services, including the Azure VPN Gateway.
The following values are used in this guide, but you can adjust these values as needed:
- Resource Group: dev-aue-net-rg
- VNet Name: dev-aue-vnet-01
- Region: Australia East (or your nearest geographic location)
- IPv4 Address Space: 10.10.10.0/24
- Subnet: WorkloadSubnet
- Subnet Address Range: 10.10.10.0/26

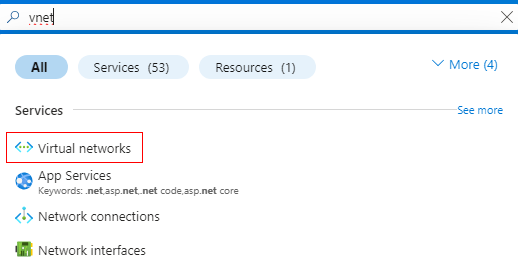

Log in to the Azure portal, type "vnet" in the search bar, and select Virtual networks to open its menu:

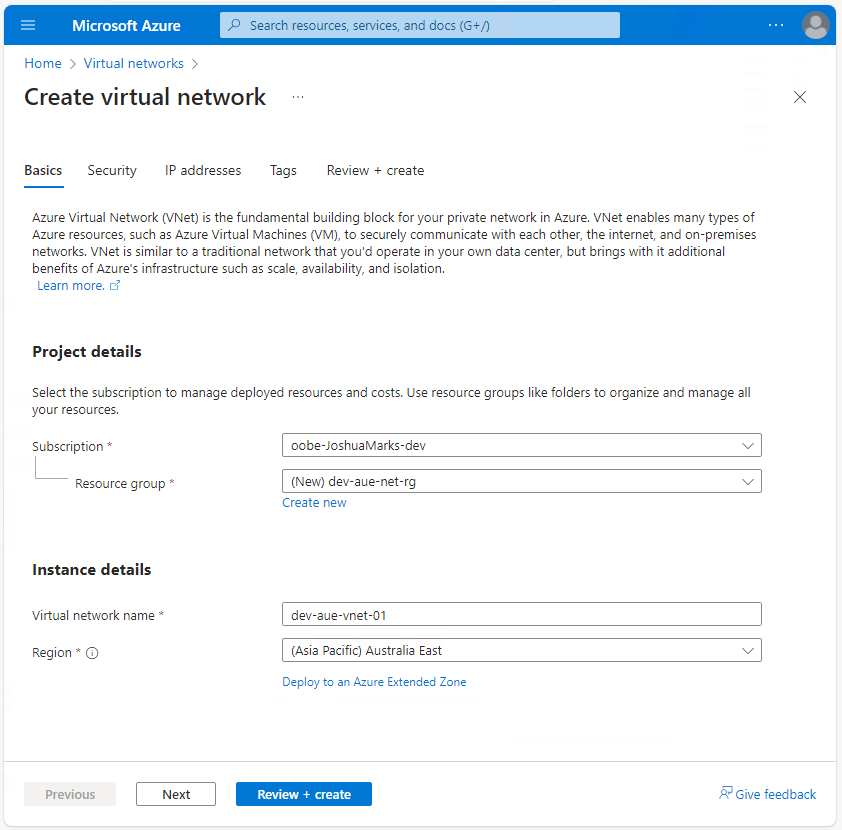

Select Create to enter the virtual network creation workflow. In the Basics tab, enter the required values and create a new resource group if necessary. Click Next at the bottom of the page after completing this step:
In the Security tab, enter any required configuration or leave the default values. Then click Next when done.

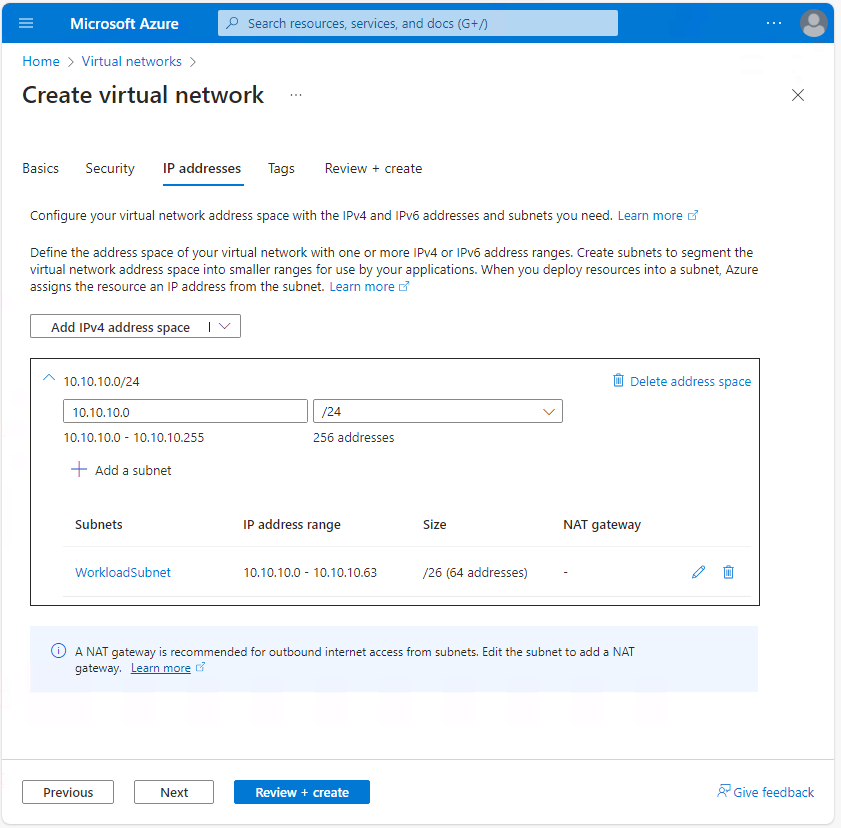

In the IP addresses tab, enter the allocated VNet IP address space and create the subnet (ie WorkloadSubnet). This subnet hosts the virtual machine that connects to the Azure site-to-site VPN:

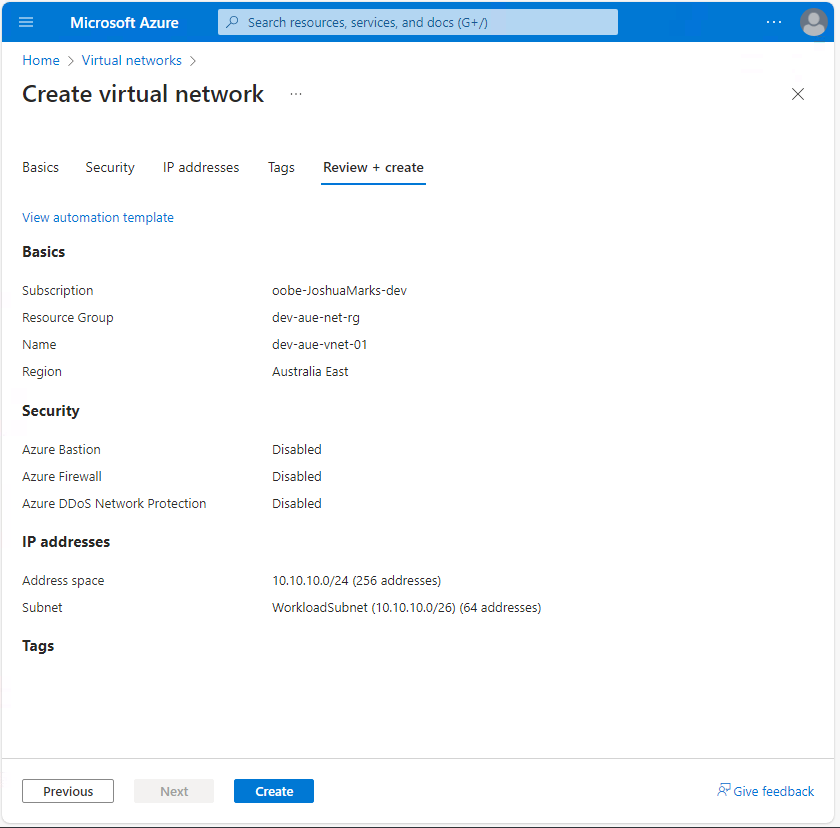

When complete, click Review + create. Review the workflow configuration summary and select Create to deploy the virtual network:
Create a Gateway Subnet

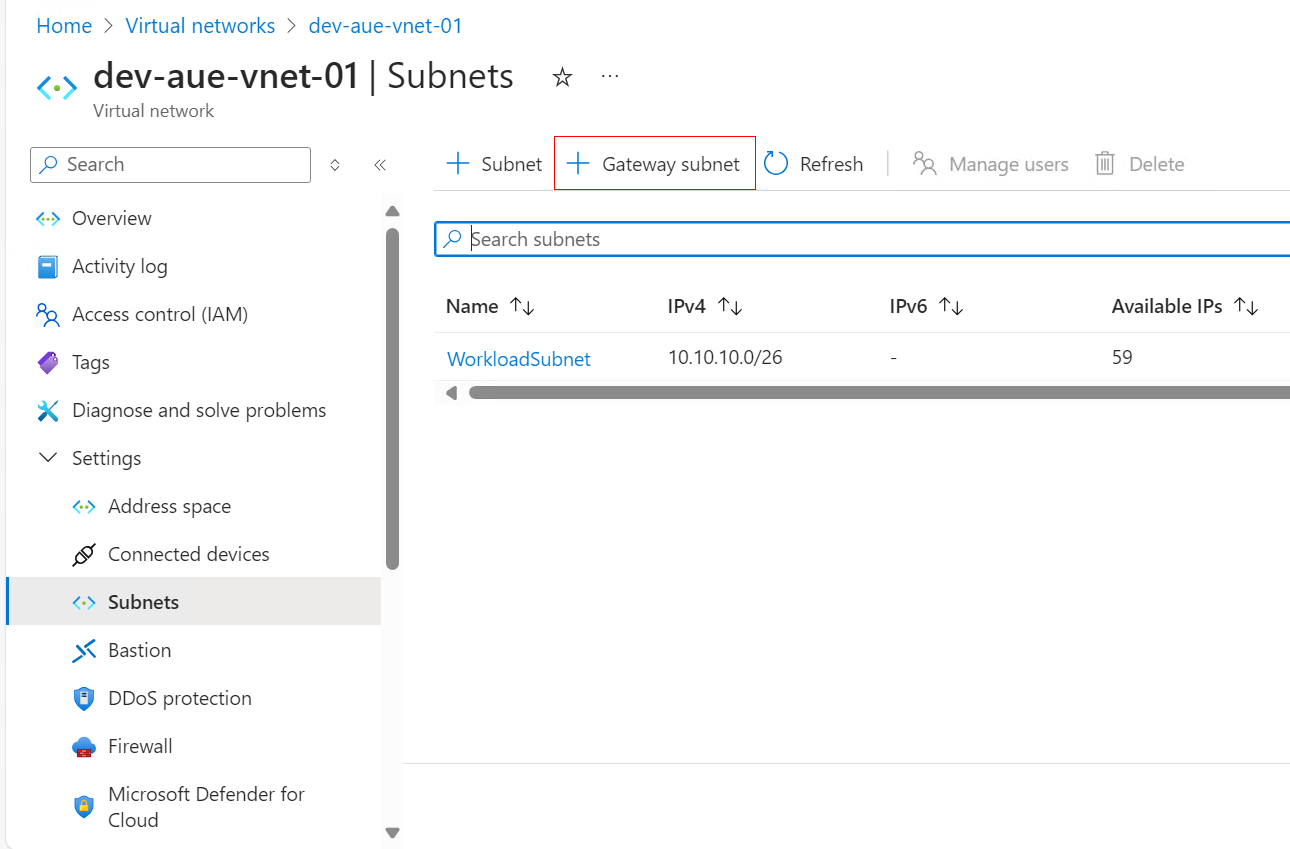

Before deploying a VPN Gateway, you need to create a gateway subnet to host it. Within your newly created virtual network, navigate to Settings > Subnets and select the + Gateway subnet button at the top of the page to enter the subnet creation flow:

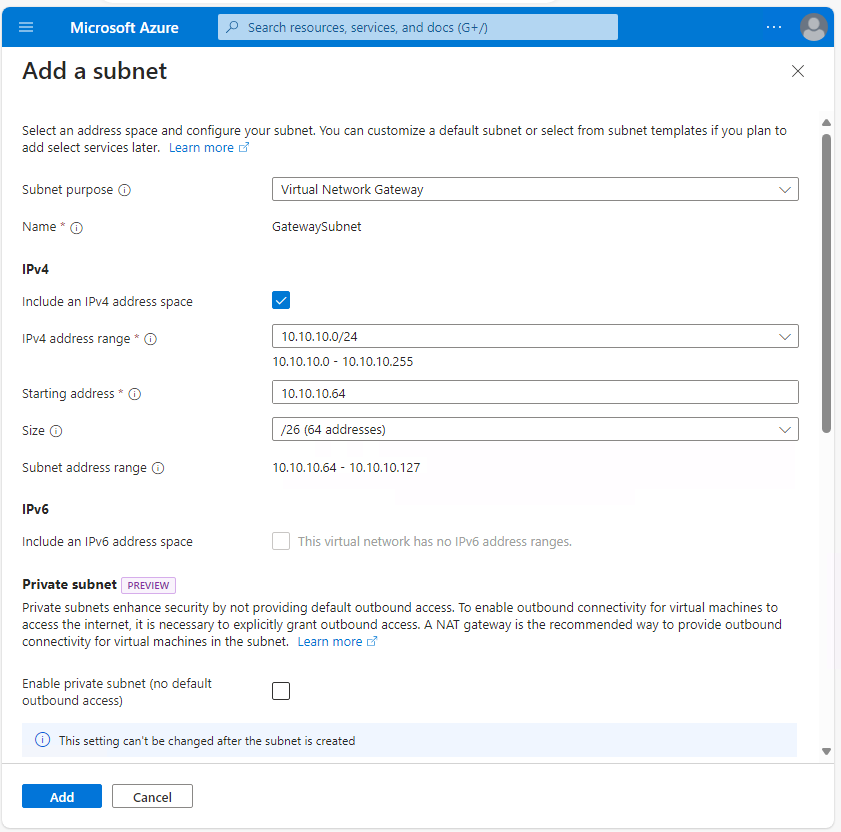

The Subnet purpose should be set to Virtual Network Gateway. Make sure you don't change this setting. Note that the subnet is automatically named GatewaySubnet. This is required for it to be dedicated to a VPN Gateway.
Enter the subnet allocation for the gateway subnet in the IPv4 section, ensuring that the Size field matches the desired subnet mask as this cannot be changed once the VPN Gateway has been deployed in the subnet. The subnet mask must be a /27 at minimum to support Azure VPN Gateway. A /26 is used in this example to allow for expansion for future use cases.
You haven't specified IPv6 for this virtual network, so the IPv6 section is grayed out, and you don't need to worry about the remainder of the subnet options. Once complete, select Add to create the Gateway subnet:
Create a VPN Gateway
With a VNet and dedicated subnet created, it's time to deploy the VPN Gateway to host the Azure site-to-site VPN.
In the Azure portal search bar, type "virtual network gateway" and select the Virtual network gateway icon in the results. Hit Create to enter the virtual network gateway creation flow.

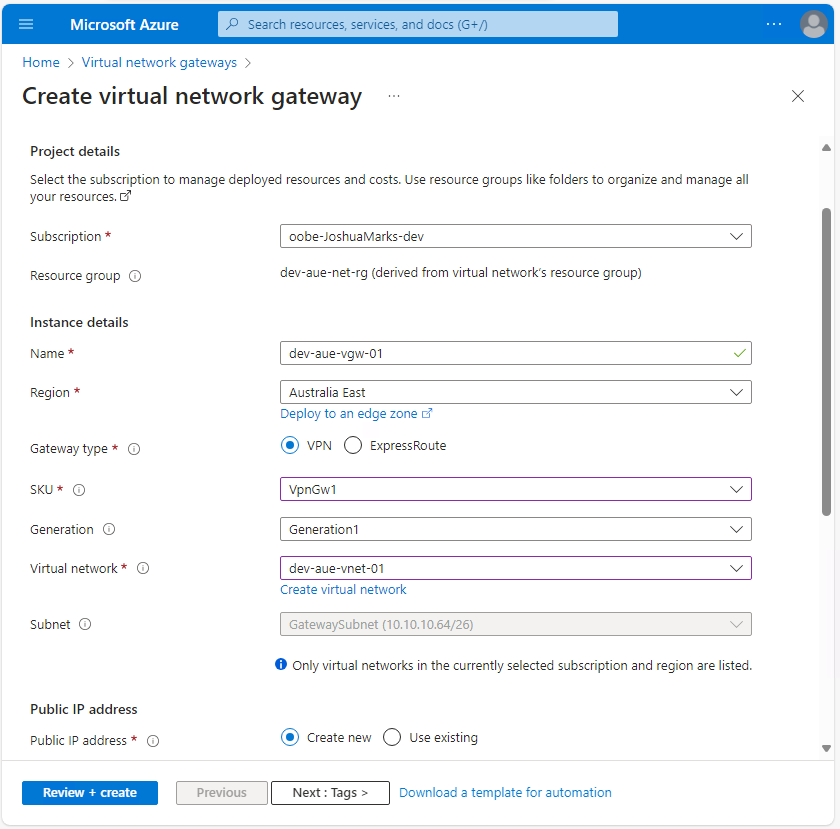

You'll use the following values in this tutorial, but you can adjust the values based on your own requirements:
- Resource Group: dev-aue-net-rg
- Gateway Name: dev-aue-vgw-01
- Region: Australia East (or your nearest geographic location)
- Gateway Type: VPN
- SKU: VpnGw1 (use Microsoft's list of Gateway SKUs to determine the best option for your performance requirements)
- Virtual Network: dev-aue-vnet-01
- Subnet: GatewaySubnet (this should be the only option available)

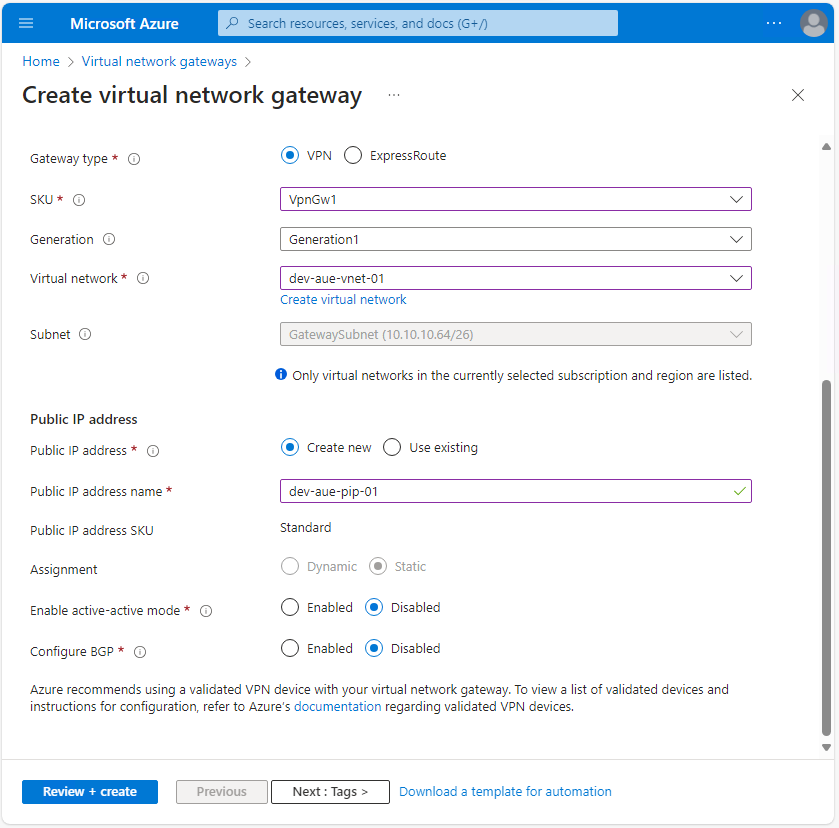

In the Public IP address section, select Create new and name the new Azure public IP address to be assigned to the VPN Gateway. In this example, the remaining options have been disabled; however, if you wish to utilize an active-active mode VPN Gateway or explicitly require Border Gateway Protocol (BGP), you can enable them and complete the configuration:

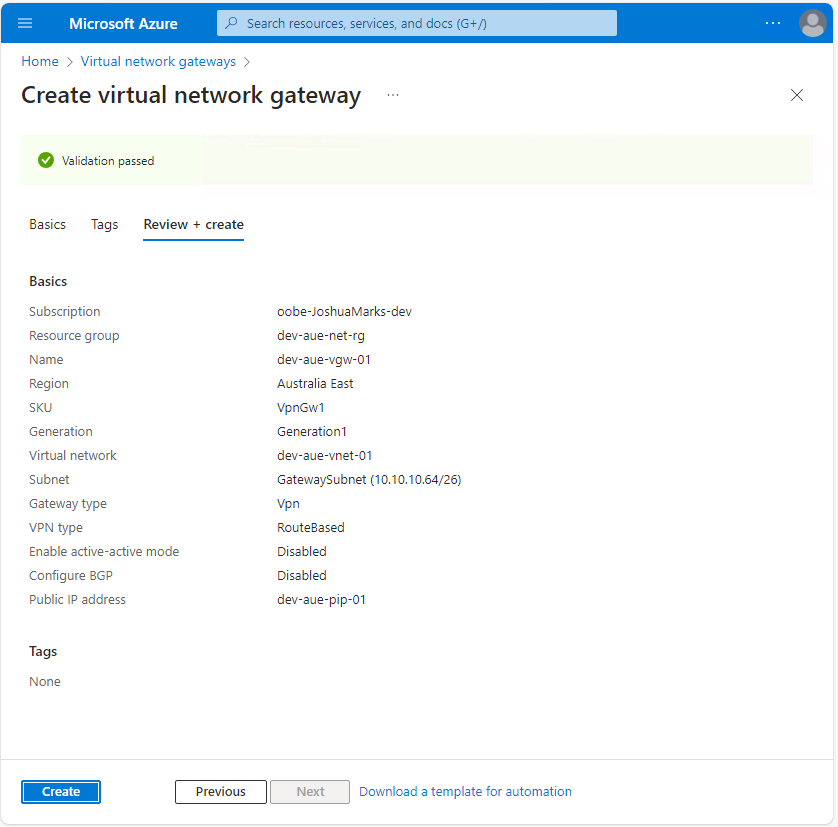

Once complete, hit Review + create, validate your configuration settings, and select Create to deploy the VPN Gateway. Take note that the deployment of a VPN Gateway can take a while—nearly twenty minutes for this example and up to forty-five minutes according to the Microsoft documentation :
Create a Local Network Gateway
A local network gateway represents the network properties of the on-premise VPN device, which connects to the Azure site-to-site VPN. You need to configure this so the VPN Gateway knows where to send IPsec connection traffic and what network destinations can be reached over the Azure site-to-site VPN.

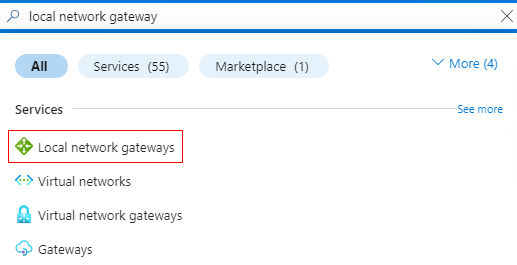

In the Azure portal search bar, type "local network gateway" and select the Local network gateways icon in the results:

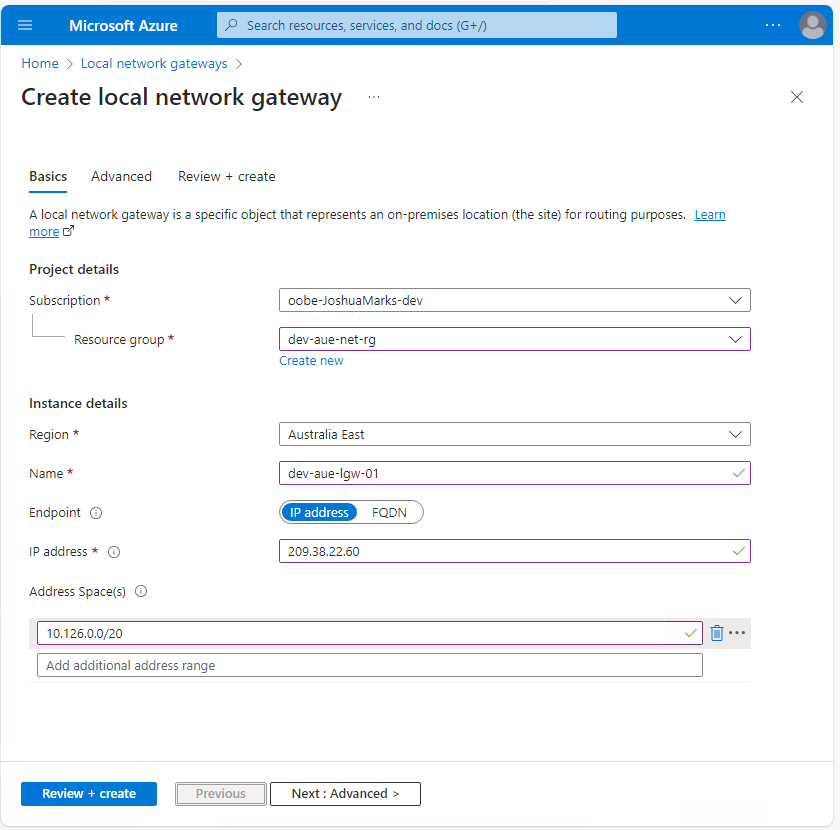

Hit Create and enter the following details for the local network gateway creation flow:
- Resource Group: dev-aue-net-rg
- Gateway Name: dev-aue-lgw-01
- Region: Australia East (or your nearest geographic location)
- Endpoint: IP address
- IP address: Input the public IP address of the on-premise VPN device
- Address Space(s): Input the private IP address ranges that can be reached through the Azure site-to-site VPN

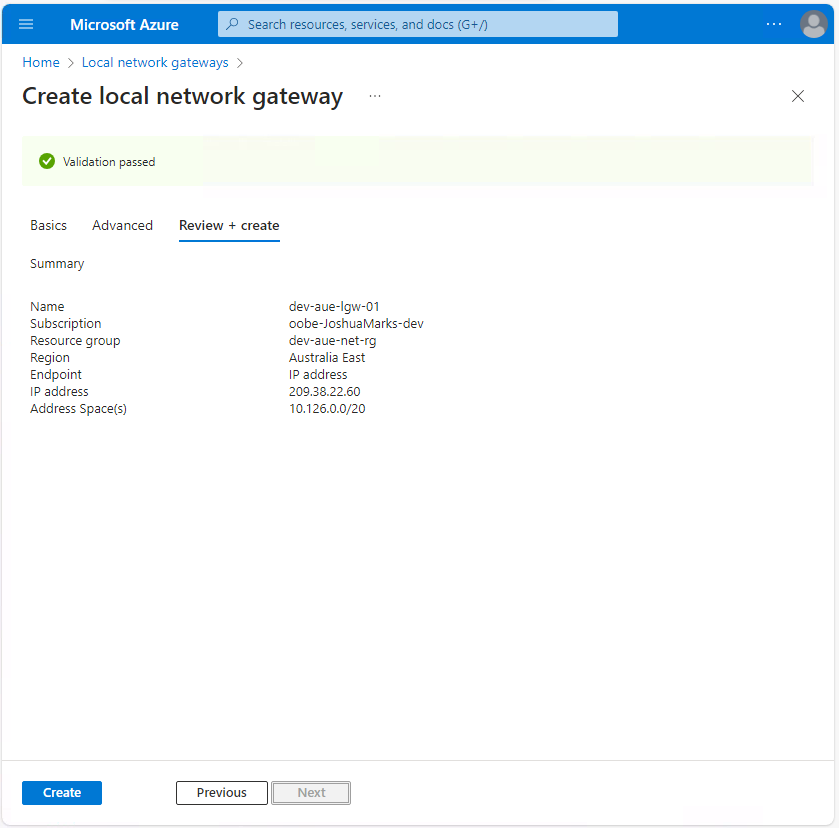

If BGP routing is required, hit the Next: Advanced button to configure BGP settings. Since you're not using BGP routing in this example, hit Review + create, validate your configuration settings, and select Create to deploy the local network gateway:
Create a VPN Connection
At this point, you've created all the dependencies, and it's time to deploy the Azure site-to-site VPN using a connection between the VPN Gateway and the on-premise VPN device.
Navigate to the VPN Gateway you deployed previously and select the Connections tab. Hit Add to enter the VPN connection creation workflow.

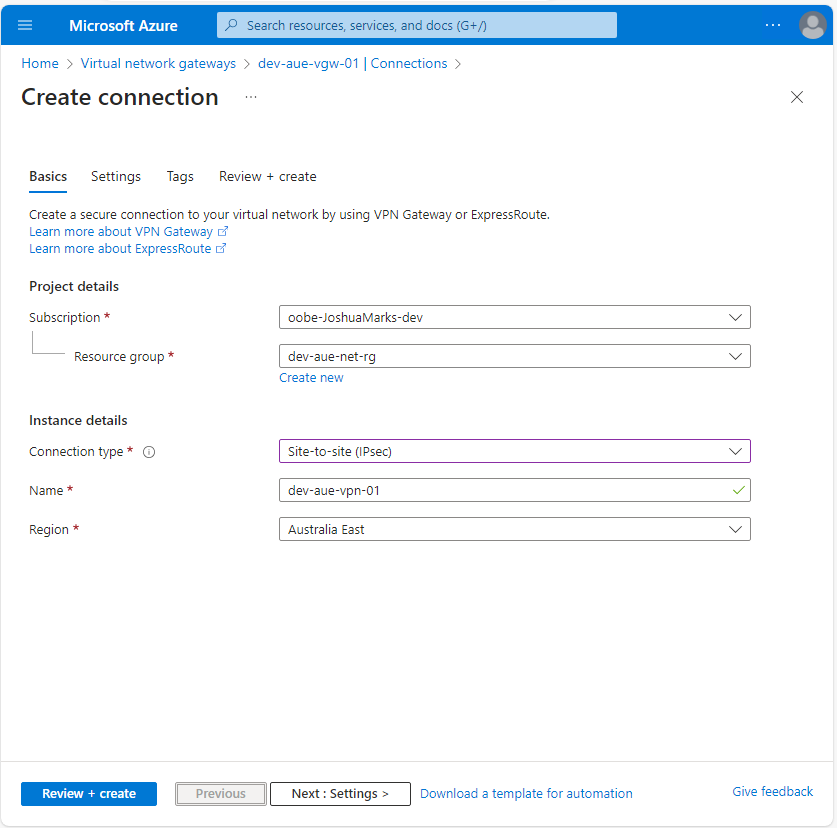

On the Basics page, enter the following required project details and instance details:
- Resource group: dev-aue-net-rg
- Connection type: Site-to-site (IPsec)
- Name: dev-aue-vpn-01
- Region: Australia East (or your nearest geographic location)
Then, select the Next: Settings button to configure the VPN connection settings:

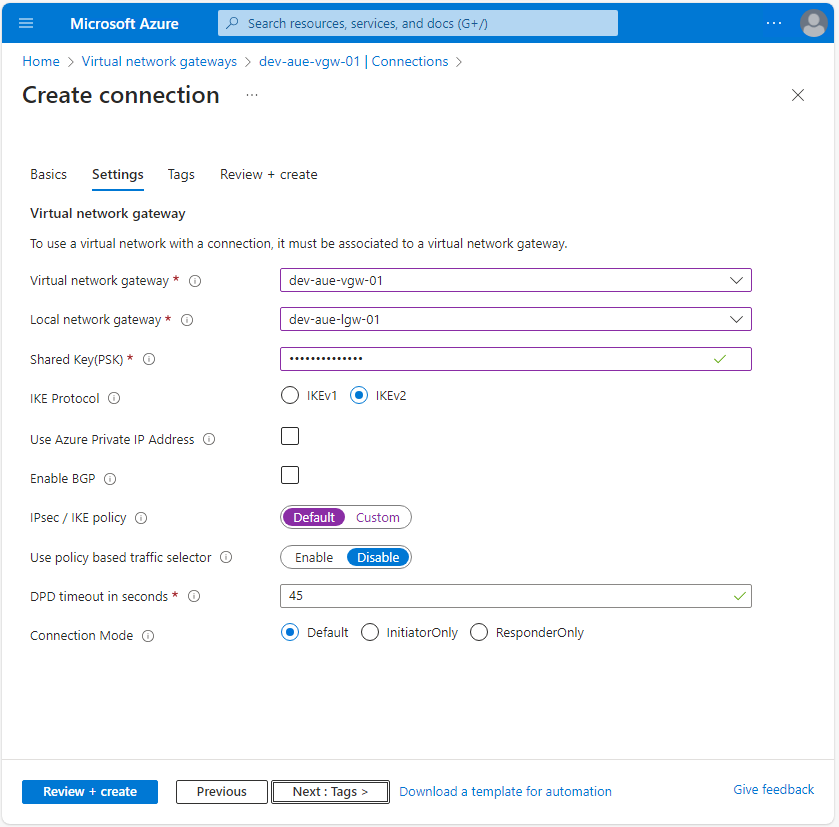

On the Settings page, enter the required VPN details as follows:
- Virtual network gateway: dev-aue-vng-01
- Local network gateway: dev-aue-lng-01
- Shared Key (PSK): Enter a sufficiently complex string
- IKE Protocol: IKEv2
- Use Azure Private IP Address: Disable
- Enable BGP: Disable
- IPsec / IKE Policy: Default (the current default policy settings are available in this documentation )
- Use policy based traffic selector: Disable
- DPD timeout in seconds: 45
- Connection Mode: Default
Once the settings page is configured, select Review + create, validate your configuration settings, and select Create to deploy the VPN connection:
Configure the VPN Device and Verify the Connection
Now that the Azure side of the site-to-site VPN is configured, you need to set a matching VPN configuration on the on-premise VPN device. When you configure the on-premise VPN device, you have to use the same preshared key (PSK) that was configured on the VPN connection. The Azure VPN Gateway public IP address is configured as the remote tunnel address on the on-premise VPN device. Additionally, the IPsec parameters must match for tunnel negotiation to succeed.
Microsoft provides guidance to configure the VPN device for all enterprise networking vendors . On-premise VPN devices from some vendors can have a configuration template generated within the Azure portal to simplify the deployment process.

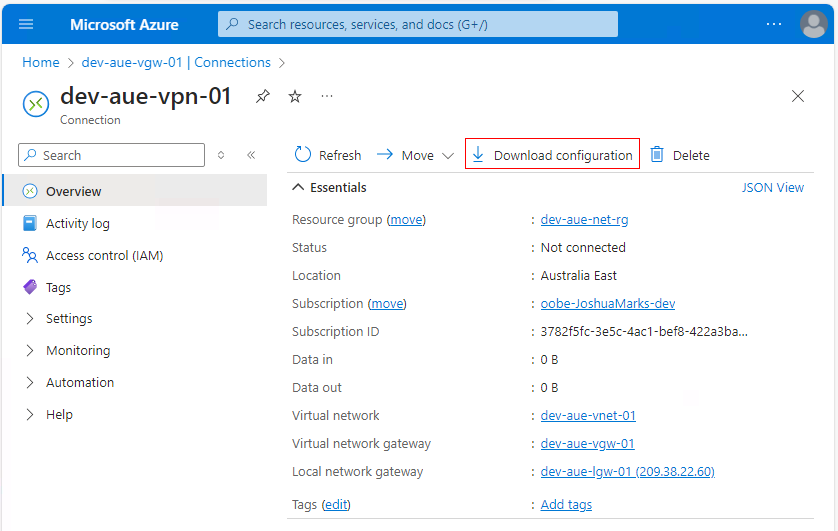

To download a configuration template, navigate to the site-to-site VPN connection created previously. Then, in the Overview tab, select the Download configuration button:

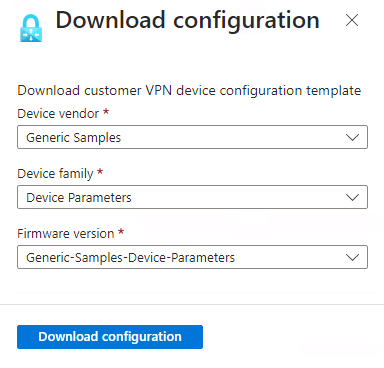

Enter the VPN device details and download the configuration. You can then replace any generic configuration and apply the template to your on-premise VPN device:
In this guide, you are configuring a remote VPN device to connect to the Azure VPN Gateway using the configuration guide provided by Microsoft in the "Validated VPN devices and device configuration guides."

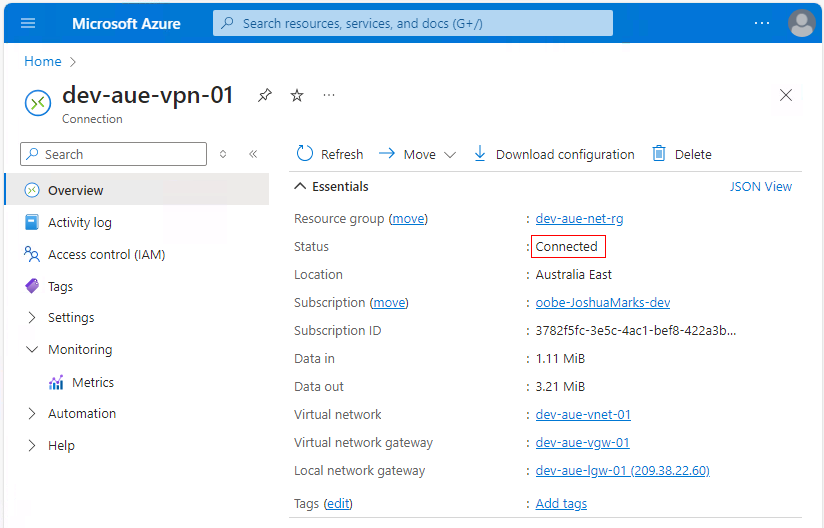

After configuring your VPN device, you need to use the Azure portal to verify the VPN connection before attempting to consume the site-to-site VPN. Once the on-premise VPN device is configured, navigate back to the VPN connection you created previously, and in the Overview tab, confirm that the status shows Connected:
Connect to a VM

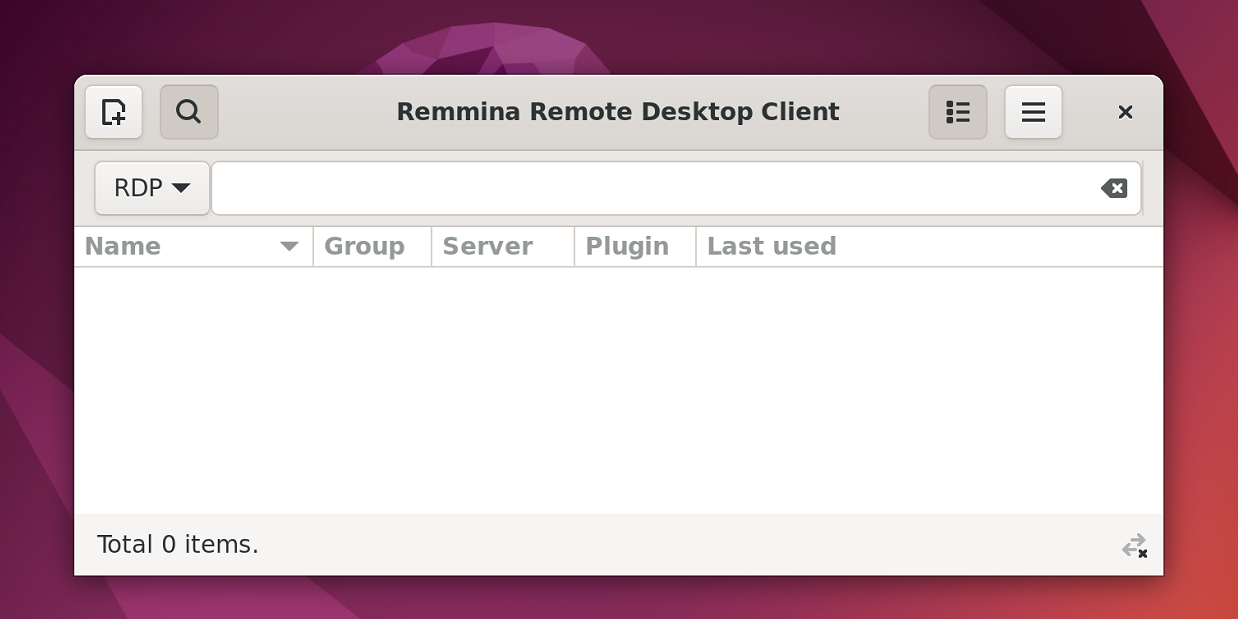

Now that the Azure site-to-site VPN is configured and established, you need to connect to a preexisting Windows Server VM in Azure over the VPN using Remote Desktop Protocol (RDP). In this example, you connect from a Linux desktop, but similar steps apply to a Windows desktop :

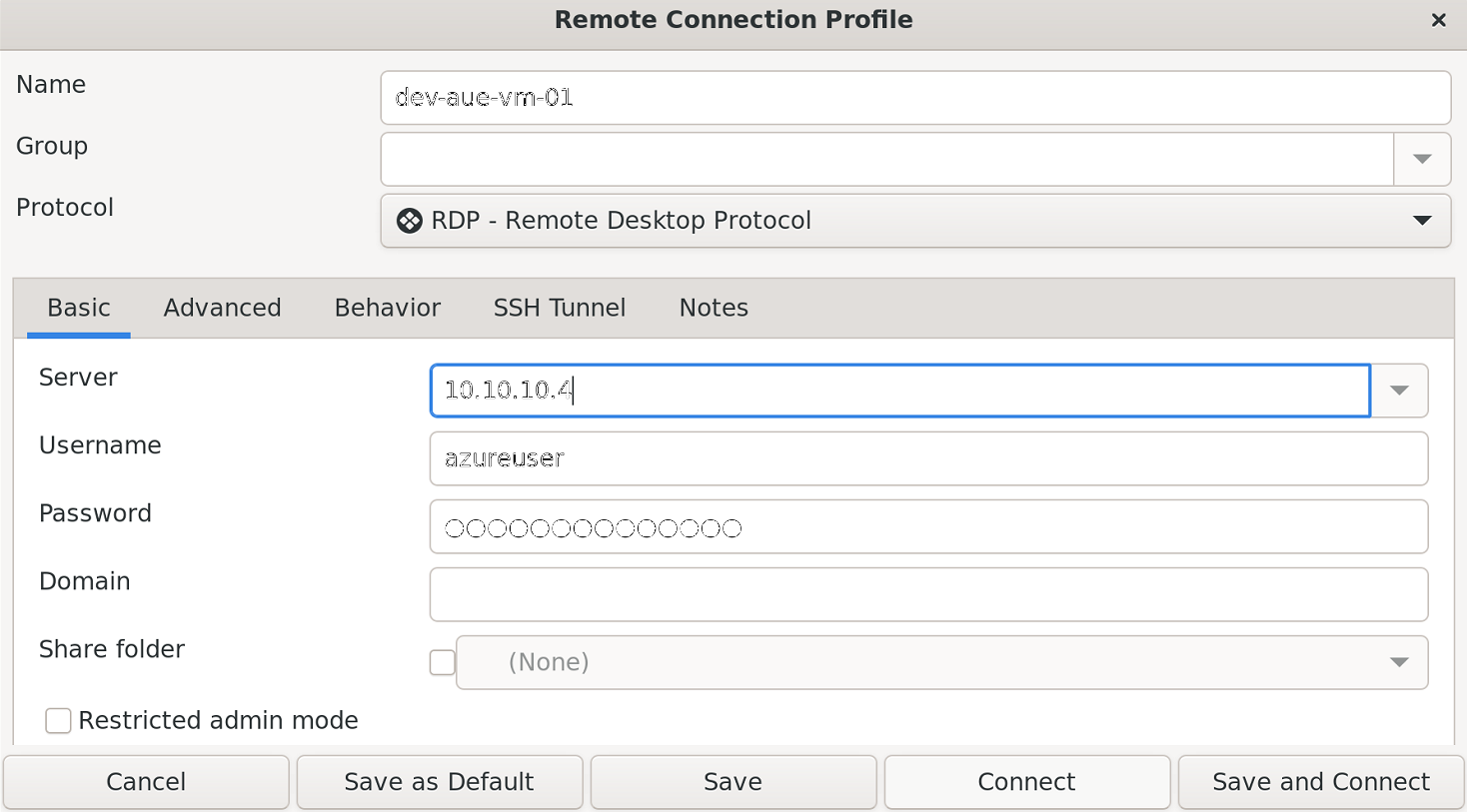

Use the remote desktop client to specify the connection parameters to an Azure VM using its private IP address. This ensures the RDP connection traverses the Azure site-to-site VPN. Connect to the Azure VM using the Connect button:

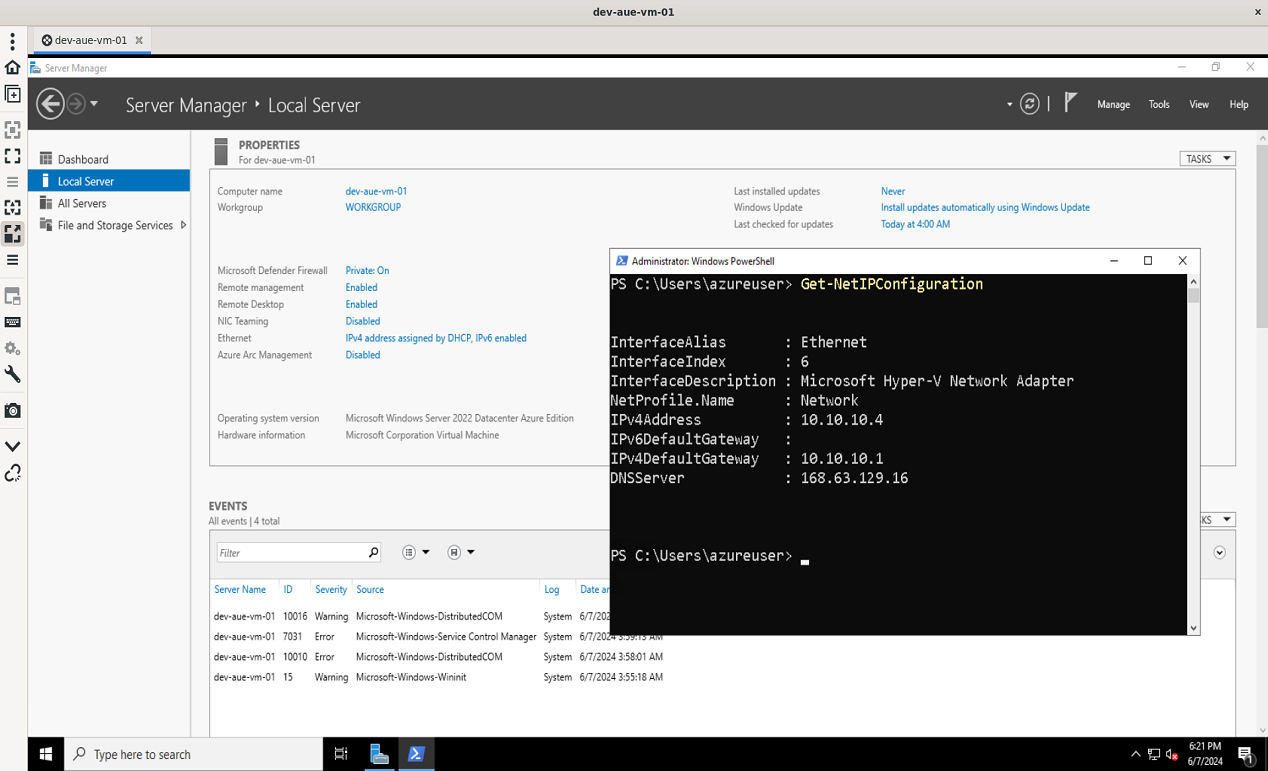

If your Azure site-to-site VPN works, you will see a remote desktop session open to the Azure VM. PowerShell was used to confirm that the VM has a private IP address only. Open the Start menu, type "Windows PowerShell," and select Windows PowerShell. Type and hit the Enter key to view the Azure VM network information:
Conclusion
In this tutorial, you used the Azure portal to configure Azure site-to-site VPN with an on-premise VPN device, and you connected to an Azure VM from on-premise over the site-to-site VPN.
